Burial Vaults & Head Panels
Vaults
These prices are effective as of January 1st ,2023 and subject to change without notice.
In most areas of the country, no state or local law makes you buy a container to surround the casket in the grave. However, many cemeteries require that you have such a container so that the grave will not sink in. Either a Grave Liner or a Burial Vault will satisfy these requirements.
The descriptions Gasketed and Non-Gasketed are the manufacturers’. Although, certain caskets and vaults offered for sale by the Casket provider may be of better quality construction and comprised of more durable material than another, the casket provider nor any of its employees represents or implies that any casket or vault will be air-tight or will provide long-term preservation of human remains.
Prices starts at $895.00 for Graveliner
$1,450.00 for Trinty Vault
This Excludes Delivery Fee. Must add sales tax
SOME CEMETERIES CHARGE AN INSTALLATION CHARGE FOR OUTER BURIAL CONTAINERS OR DIRT REMOVAL CHARGES. THESE CHARGES WILL VARY DEPENDING ON THE CEMETERY.
Around $200.00
 |
Outer Burial Container Vs Burial Vault
A grave liner is the minimum way to satisfy the cemetery regulation. A grave liner is a simple concrete box with a lid. The base is placed into the grave, the casket is lowered into the base and the lid is then placed on top. Most people however, prefer to use a burial vault. The main difference is that a burial vault is a box constructed of reinforced concrete that is coated with tar and/or asphalt, painted and has some type of liner and seal to make the burial vault resistant to the entrance of water and grave sitesubstances
|
|

|
Webb Concrete Graveliner
Our Price $895.00
This Excludes $50.00 delivery fee.
Excludes Sales Tax
#30 Concrete Grave Liner, does not resist the entrance of outside elements.
30” x 89” inside, 35.5” x 92” grave size.
Graveliners are the most basic outer burial container. Made from concrete, grave liners are unlined. The purpose is to prevent the ground from caving in the casket. A grave liner is made of reinforced concrete and will satisfy any cemetery requirements. Grave liners only Protects the casket from caving in.
SOME CEMETERIES CHARGE AN INSTALLATION CHARGE FOR OUTER BURIAL CONTAINERS OR DIRT REMOVAL CHARGES. THESE CHARGES WILL VARY DEPENDING ON THE CEMETERY.
Around $200.00
DISCLAIMER OF WARRANTIES:
Webb Discount Caskets makes no representations or warranties regarding the Outer Burial Containers listed above. The only warranties, expressed or implied, granted in connection with Outer Burial Containers sold are the express written warranties, if any, extended by the manufacturers thereof. Webb Discount Caskets hereby expressly disclaims all warranties, expressed or implied, relating to the Outer Burial Containers, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
|
|

|

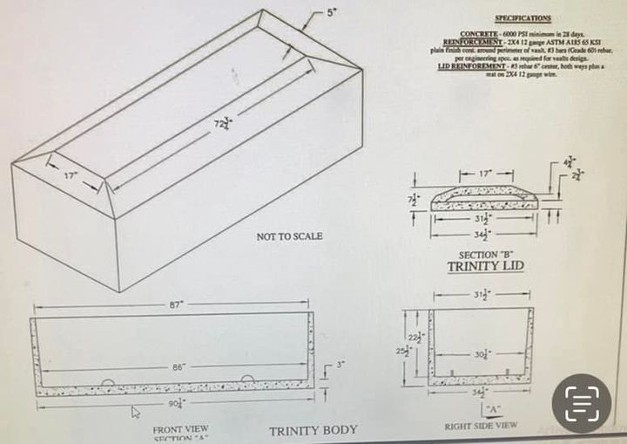

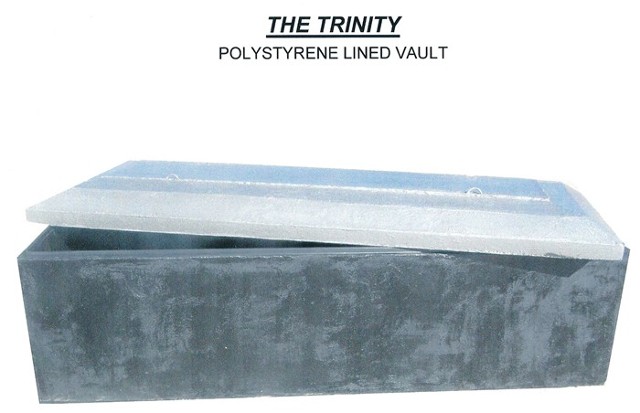

Webb Trinity Lined Vault
Our Price $1,450.00
Must add sales Tax
delivery fee $50.00.
Excludes Sales Tax
Product Interior Dimensions
30”x86”
Inside LENGTH at casket rest
86”
Inside WIDTH at casket rest
30”
Inside HEIGHT at casket rest
25 ½”
Outside length
91 9/16”
Outside width
35''
Outside Overall height
34 3/16”
Base weight
Grave opening size
38”x96”

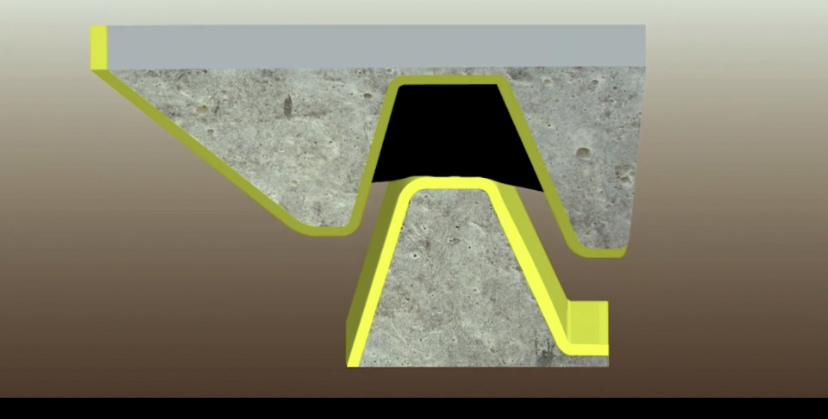

A burial vault is a lined and sealed outer receptacle that houses the casket. It protects the casket from the weight of the earth and heavy maintenance equipment that will pass over the grave. It also helps resist water and preserves the beauty of the cemetery or memorial park by preventing the ground from settling. This type of vault has a polystyrene (a plastic material) liner and one of the best protection burial vaults in today's market is the fully jacketed polystyrene concrete vault. This type of vault has three barriers for protection from ground water.... a polystyrene protection on the outside, a concrete protection in the middle and a polystyrene protection on the inside.
SOME CEMETERIES CHARGE AN INSTALLATION CHARGE FOR OUTER BURIAL CONTAINERS OR DIRT REMOVAL CHARGES. THESE CHARGES WILL VARY DEPENDING ON THE CEMETERY.
Around $200.00
DISCLAIMER OF WARRANTIES:
Webb Discount Caskets makes no representations or warranties regarding the Outer Burial Containers listed above. The only warranties, expressed or implied, granted in connection with Outer Burial Containers sold are the express written warranties, if any, extended by the manufacturers thereof. Webb Discount Caskets hereby expressly disclaims all warranties, expressed or implied, relating to the Outer Burial Containers, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
|
 |
Webb14 gauge Steel Maintenance Shell Graveliner, “Steel Box”
$1,095.00
material:
A minimum requirement at some cemeteries… NOT a vault; non-protective
A minimum requirement at some cemeteries… NOT a vault; non-protective
Liner dimensions: 30 x96. This Excludes $50.00 delivery fee.
Excludes Sales Tax
|
 |
- An extra measure of protection with a choice of two metals: Aluminum and Galvanized Steel.
- Galvanized steel, available in -12 gauge - doubles the life of the vaults. $1,895.00 Must call for Price
|
Graveliner and Vaults sold only for Single Plots Single depth only $50.00 DELIVERY FEE MAY APPLY
Single plots: Single plot are the most common type of plot in a cemetery. Single plots contain the remains of one person in a casket.
Oversize #34 Concrete Graveliner
Fits Grave Size 40'' Concrete Grave Liner (Non-Sealing) Inside
GRAVE SIZE 40''X 96''
34" interior width
Liner dimensions: 34" W x 90" L Grave size: 38" x 96"
 |
Oversize Grave Box
#34 Graveliner
Grave size 40''X96''
Our Price $1,895.00
|
|
Custom Head Panel Available only in Houston, Texas
|
Oversize Grave Box
#34 Graveliner
Grave size 40''X96''
Our Price $1,895.00
Casket Dimensions
Exterior width of casket: 33"
Add $250.00
|
|
|
|
|
